Inductive mooring line modem

Supporting as many instruments as required and operating at the baudrate of 4800 over an insulated mooring line of more than 4km length, the RBR inductive mooring line modem can meet any challenge. It is a simple, strong, fast, and flexible solution to bring your data to the surface.

  • Easy system integration
  • Low power consumption
  • Fast data transmission
  • Flexible configuration
  • Robust and reliable
  • RS-232 output

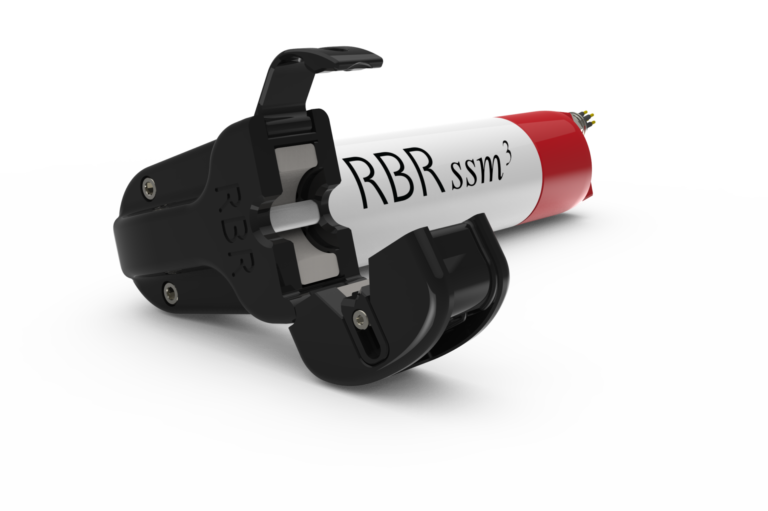

RBRssm3

Features & Configurations

Easy system integration

low power consumption

fast data transmission

flexible configurations

robust and reliable

RS-232 output

The inductive mooring line modem consists of the head-end modem (HEM) and one or more sub-surface modems (SSM). Each instrument on the mooring line system is connected to an SSM, which communicates inductively with the HEM through the mooring cable.

The main features of the inductive mooring line modem are a fast communication rate along the mooring line, shock protected ferrites, no pre-deployment configuration required, an automated instrument discovery mechanism, and an intelligent addressing mechanism that conserves power. A comprehensive set of system commands is available to query or command the instruments to identify themselves, take a sample, and transmit data. Instruments may be addressed individually, in sub-groups,or all at once.

The SSM is available as an integral option for RBR instruments, attached as the battery end-cap via a coupler. Alternatively, use it as a standalone cabled version for serial connection to an RBR instrument in combination with the RBRfermataย battery canister, or to a third-party instrument, such as ADCP.

MLM-1000 Mooring Line Modem

Specifications

Inductive Link
Baudrate 4800baud
Mooring line ร˜5 โˆ’ 15mm
HEM (head-end modem)
Serial communication Up to 115000baud
Polling mode Scheduled or interactive
Addressing mode Individual, group, or all
Voltage 9.5V to 22V
Power consumption Sleep current: 50ฮผA typ, 75ฮผA max @ 12V
Active current: 8mA typ, 12mA max @ 12V
Temperature range -30ยฐC to 60ยฐC
Clock accuracy ยฑ60 seconds/year
Housing Weatherproof
Dimensions ~260mm x 125mm x 85mm
SSM (sub-surface modem)
Serial communication 4800 to 19200baud
Voltage 8V to 22V (ext), 2V to 8V (bat)
Power consumption Sleep current:
40ฮผA typ, 60ฮผA max @12V (ext)
120ฮผA typ, 180ฮผA max @7V (bat)

Active current:
3mA typ, 4.5mA max @12V (ext)
5mA typ, 7.5mA max @7V (bat)

Temperature range -10ยฐC to 50ยฐC
Housing Plastic or Ti
Dimensions ~330mm x ร˜63.3mm (plastic)
~310mm x ร˜60.3mm (Ti)
Depth rating 750m (plastic)
4000m (Ti)
