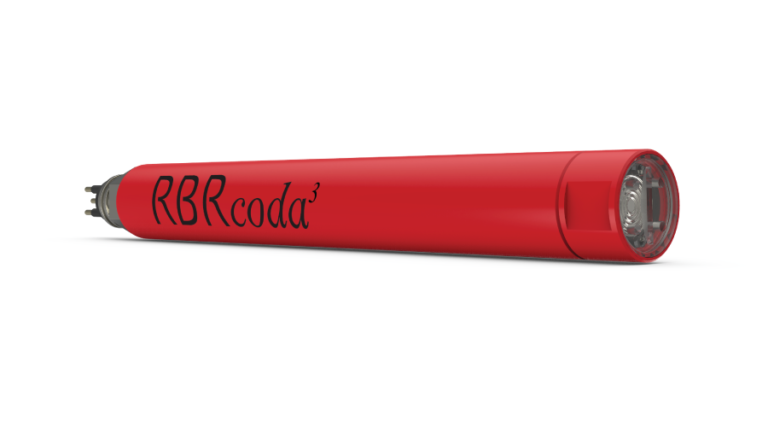

RBRcoda3 D: pressure (depth)

The RBRcoda3 D is a cabled instrument with high accuracy, low power consumption, and the ability to endure harsh conditions. The sensor is easy to integrate with RS-232 serial output and a wide voltage range.

  • High accuracy, low drift
  • Standard sampling up to 2Hz, fast up to 32Hz
  • Low power and wide voltage input range
  • Depths up to 6000m
  • MCBH-6-MP on all units
  • RS-232 output
  • Logging RBRsolo3 D available

The RBRcoda³ D|tide16 variant is designed specifically for measuring water level changes over time with tides. By taking averages of pressure readings over extended periods of time, it provides accurate tide level data.

RBRcoda³ D: pressure (depth)

Features & Configurations

High Accuracy

Low power consumption

Long deployments

Compact and lightweight

RS-232 output

Depths up to 6000m

The RBRcoda3 D is a great choice for many oceanographic and limnology applications, such as borehole monitoring, remotely operated underwater vehicles, stream gauging, or harbour water levels.

Optional Configurations

RBRcoda³ D pressure; 2Hz continuous sampling; depths up to 1000m
RBRcoda³ D | deep pressure; 2Hz continuous sampling; depths up to 6000m
RBRcoda³ D | fast pressure; up to 8Hz, 16Hz, or 32Hz continuous sampling
RBRcoda³ D | tide16 tide; up to 16Hz burst sampling

Specifications

Physical
Housing Plastic or titanium
Diameter ~25mm
Length ~200mm (~235mm with connector)
Weight 170g in air, 70g in water (plastic)
370g in air, 270g in water (Ti)
Power
Supply voltage 6V to 18V (12V nominal)
Power consumption 10mA/120mW at 12V
Interface
RS-232 polled or autonomous streaming
Pressure
Calibrated measurement range 20 / 50 / 100 / 200 / 500 / 1000m (plastic)
1000 / 2000 / 4000 / 6000dbar (Ti)
Initial accuracy ±0.05% full scale
Resolution <0.001% full scale
Typical Stability ±0.05% full scale / year
Time constant <10ms
