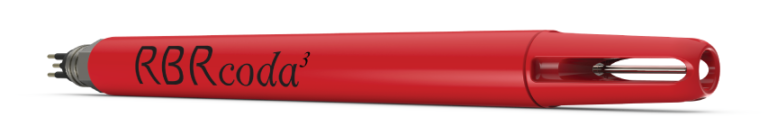

RBRcoda3 T: temperature

The RBRcoda3 T is a cabled instrument with high accuracy, low power consumption, and the ability to endure harsh conditions. The sensor is easy to integrate with RS-232 serial output and a wide voltage range.

  • High accuracy, low drift
  • Standard sampling up to 2Hz, fast up to 32Hz
  • Low power and wide voltage input range
  • Depths up to 6000m
  • MCBH-6-MP on all units
  • RS-232 output
  • Logging RBRsolo3 T available
RBRcoda³ T: temperature sensor

Features & Configurations

Low power consumption

High Sensitivity

High dynamic range

Depths up to 6000m

RS-232 OUTPUT

Compact and lightweight

The RBRcoda3 T is a great choice for many oceanographic and limnology applications, including remotely operated underwater vehicles, stream gauging, and harbour water level monitoring. The thermistor on the RBRcoda3 T | slow | deep is embedded, making the sensor extremely robust and deployable in the most challenging environments, such as boreholes and industrial settings.

Optional Configurations

RBRcoda³ T temperature, depths up to 1700m
RBRcoda³ T | deep temperature, depths up to 6000m up
RBRcoda³ T | deep | slow temperature, depths up to 6000m up, 1Hz sampling rate, embedded thermistor
RBRcoda³ T | fast up to 32Hz sampling

Specifications

Physical
Housing Plastic or titanium
Diameter ~25mm
Length ~245mm ~230mm | slow | deep
Weight 160g in air, 60g in water (plastic)
360g in air, 260g in water (Ti)
Depth rating Up to 1700m (plastic)
Up to 6000m (Ti)
Power
Supply voltage 6V to 18V (12V nominal)
Power consumption 10mA/120mW at 12V
Temperature
Calibrated range* -5°C to 35°C
Initial accuracy ±0.002°C
Resolution <0.00005°C
Typical stability ±0.002°C/year
Time constant <0.1s |fast, <1s standard

* A wider temperature range is available upon request
