RBRquadrante: four-channel radiometer

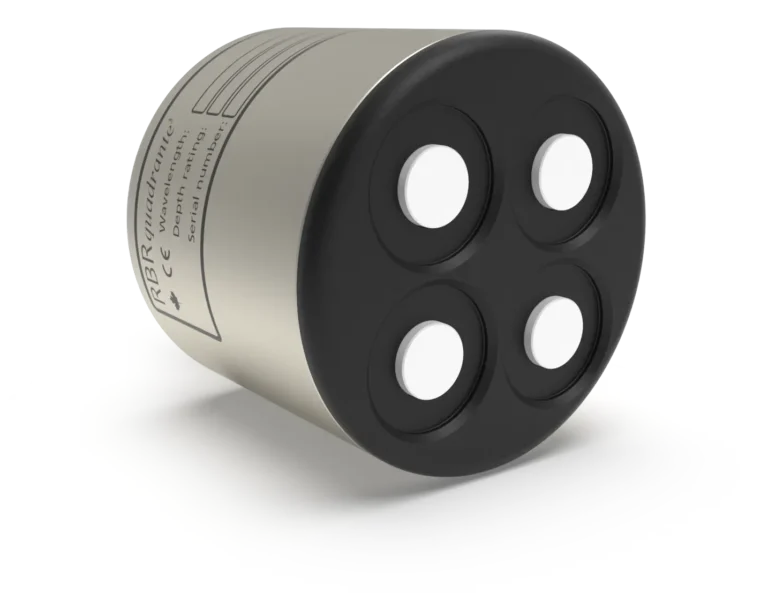

The RBRquadranteย is aย multi-spectralย radiometer with four channels, capable of measuring multiple wavebands simultaneously, including PAR. It features a high dynamic range, optimized cosine response, and excellent low-light detection, while power consumption and depth rating have been tailored for use in a wide variety of applications.

The RBRquadranteย supports measurement of four wavebands within the same sensor package. Tolerant of a wide ranging power supply, data are streamed via RS-232 on the MCBH-6-MP connector. A variety of adaptors make it easy to integrate into existing vehicle payload bays.

  • Low power consumption
  • High accuracy
  • High dynamic range
  • Depths up to 2000m
  • RS-232 output
  • Compact and lightweight
RBRquadrante four-channel radiometer

Features & Configurations

Low power consumption

High accuracy

High dynamic range

Depths up to 2000m

RS-232 output

Compact and lightweight

Optional Configurations

The RBRquadrante is available with any four of the following channels:

  • PAR (photosynthetically active radiation), uniform response over 400-700nm
  • Narrow-band radiation, variety of narrow-band channels

Specifications

Physical
Connector MCBH-6-MP
Diffuser Acrylic
Housing Titanium
Diameter 63mm
Length 57mm, 93mm (with connector)
Depth rating 2000m
Weight (air) 435g (in air), 250g (in water)
Sampling rate Up to 32 Hz
Power consumption
Supply voltage 4.5 to 30V (12V nominal)
Sampling 4mJ/sample (4Hz or slower)
3mA/36mW (8Hz or faster)
Sleep current 10ฮผA
Optical radiometry
Dynamic range >5.5 decades
Initial accuracyFootnoteย 1 ยฑ2%
Linearity ยฑ1%
Operating temperature range -5ยฐC to 35ยฐC
Cosine response error (water) ยฑ5% at 0-60ยฐ
ยฑ10% at 61-82ยฐ
Azimuth error (water) ยฑ1.5% at 45ยฐ
Out-of-band rejectionFootnoteย 2 >25dB (typical), OD 2.5

(1) RBR calibrates radiometers with NIST traceable references.

(2) Out-of-band rejection and resolution are wavelength dependent for narrow-band radiometers.

Photosynthetically active radiation
Wavelength range 400 to 700nm
Full scale range 0-5000ยตmol/mยฒ/s (minimum)
Resolution ยฑ0.010ฮผmol/mยฒ/s
Narrow-band wavelength channels
Centre wavelengths (CWL)Footnoteย 3 413 / 445 / 475 / 488 / 508 / 532 / 560nm
Full width at half-maximum (FWHM) 10nm (25mm for CWL 475nm)
Full scale range 0-200ฮผW/cmยฒ/nm (full sun)
ResolutionFootnoteย 4 ยฑ0.001ฮผW/cmยฒ/nm

(3) Other CWL options within the 400-1100nm range are available upon request. Contact RBR for more information.

(4) Resolution is wavelength dependent for narrow-band radiometers.

Note: Dark offset is internally temperature-compensated.
