RBRquartz3 Q

Tide and wave logger

The RBRquartzยณ Q integrates the Paroscientific Digiquartzยฎ pressure sensor for best-in-class accuracy and low drift performance. Intended for long-term autonomous or realtime observations of water level, tides and waves, the RBRquartzยณ Q can resolve small changes over long deployments.

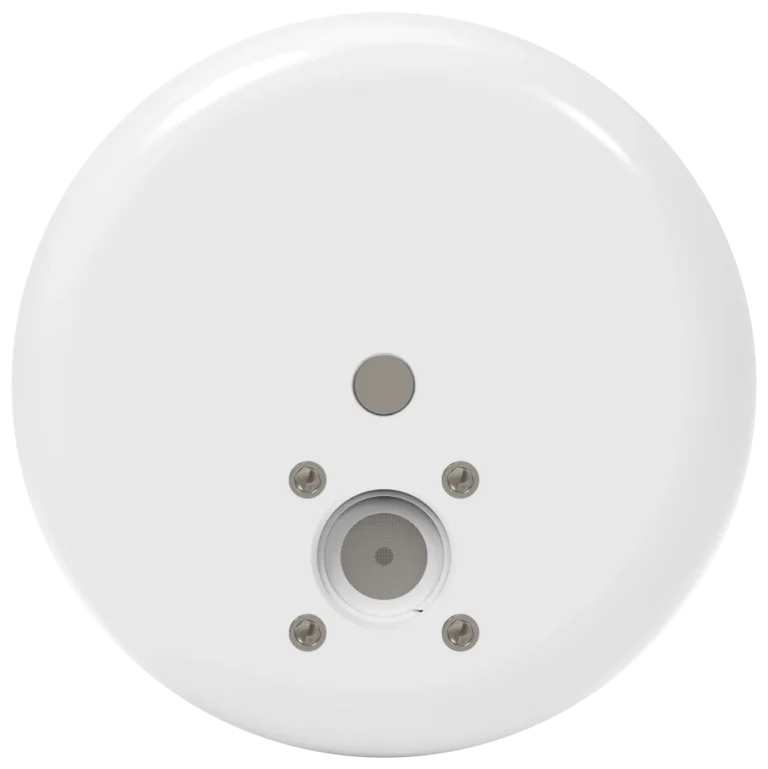

RBRquartzยณ QRBRquartzยณ Q

Features & Configurations

Long Deployments

Quartz Stability

240M Readings

UP TO 16Hz SAMPLING RATE

USB-C Download

High Accuracy

The RBRquartzยณ Q can record instantaneous pressure measurements, average pressure samples to remove wave action, and burst-sample pressure at up to 16Hz for wave height and period calculations. Wave measurements are made by burst sampling, with programmable sample rate, number of samples, and burst interval. High accuracy marine temperature data are recorded with each measurement. Wave, tide, and temperature measurements are standard with every RBRquartzยณ Q.

The RBRquartzยณ Q pressure recorder is ideal for applications such as long-term wave, tide, and sea level measurements, high-accuracy depth sensing in ROVs and AUVs, and critical engineering projects such as offshore platform leveling, dam and reservoir level sensing, and underwater pipe surveying. Online applications are enabled via RS-232 or RS-485 communications. Data transmission to a surface buoy can be performed reliably using the RBR inductive modem system.

Specifications

Physical
Storage 240M readings
Power 8 AA cells
External power 4.5-30 VDC
Communication Internal: USB-C; external: USB or RS-232/485
Clock drift ยฑ60 seconds/year
Depth rating 260m
Housing Plastic
Adapter kit available SBE-26+ frames
Size ~510mm x ร˜100mm
Weight ~2.3kg in air, ~0.25kg in water
Temperature
Range -5ยฐC to 35ยฐC
Accuracy ยฑ0.002ยฐC
Time constant <30s (embedded)
Typical stability ยฑ0.002ยฐC/year
Pressure
Range 20 / 55 / 125 / 190 / 260 dbar
Initial accuracy ยฑ0.01% full scale
Resolution 100ppb (at 16Hz sampling rate)
