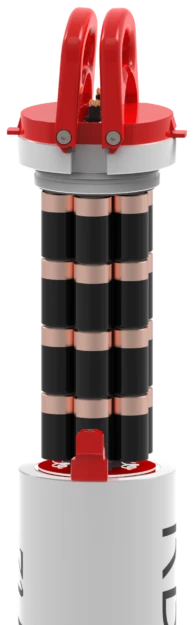

RBRquartz3 Q|plus

Tide and wave logger

The RBRquartzยณ Q|plus tide and wave logger integrates the proven Paroscientific Digiquartzยฎ pressure sensor for the best-in-class initial accuracy and low drift performance. Intended for long-term autonomous or realtime observations of water level, tides and waves, the incredibly stable pressure sensor in the RBRquartzยณ Q|plus can resolve small changes over long deployments.

  • Long deployments
  • Quartz stability
  • High accuracy
  • 240M readings
  • Up to 16Hz sampling
  • USB-C download
RBRquartz3 Q|plus

Features & Configurations

Long Deployments

Quartz Stability

240M Readings

UP TO 16Hz SAMPLING RATE

USB-C Download

High Accuracy

The RBRquartzยณ Q|plus can record instantaneous pressure measurements, average pressure samples to remove wave action, and burst-sample pressure at up to 16Hz for wave height and period calculations. Wave measurements are made by burst sampling, with programmable sample rate, number of samples, and burst interval. High accuracy marine temperature data are recorded with each measurement. Wave, tide, and temperature measurements are standard with every RBRquartzยณ Q|plus.

Flexible measurement schedules, burst sampling, and configurable integration times permit applications for tide, wave, and sea level measurements. The RBRquartzยณ Q|plus has a large battery and memory capacity for extended autonomous deployments and USB, RS-232, or RS-485 connectivity for realtime applications.

Specifications

Physical
Storage 240M readings
Power 24 D cells
External power 4.5-30 VDC
Communication USB-C, RS-232/485
Clock drift ยฑ60 seconds/year
Depth rating 260m
Housing Plastic
Size ~562.5mm x ร˜140mm
Weight ~11.7kg in air (with batteries) ~2.8kg in water (with batteries)
Temperature
Range -5ยฐC to 35ยฐC
Initial accuracy ยฑ0.002ยฐC
Time constant <2min (embedded)
Typical stability ยฑ0.002ยฐC/year
Pressure
Range 20 / 55 / 125 / 190 / 260dbar
Initial accuracy ยฑ0.01% full scale
Resolution 100ppb (at 1Hz sampling rate)
