Standard | Tide & Wave Loggers

Our most flexible, option-packed, single and dual channel loggers for tide and wave analysis.

  • Up to 6Hz sampling
  • ~30M readings standard; up to ~120M readings optional
  • External power option
  • USB 2.0 download speed
  • Flexible tide analysis
  • Low frequency wave detection
  • Intermittent and continuous burst ability

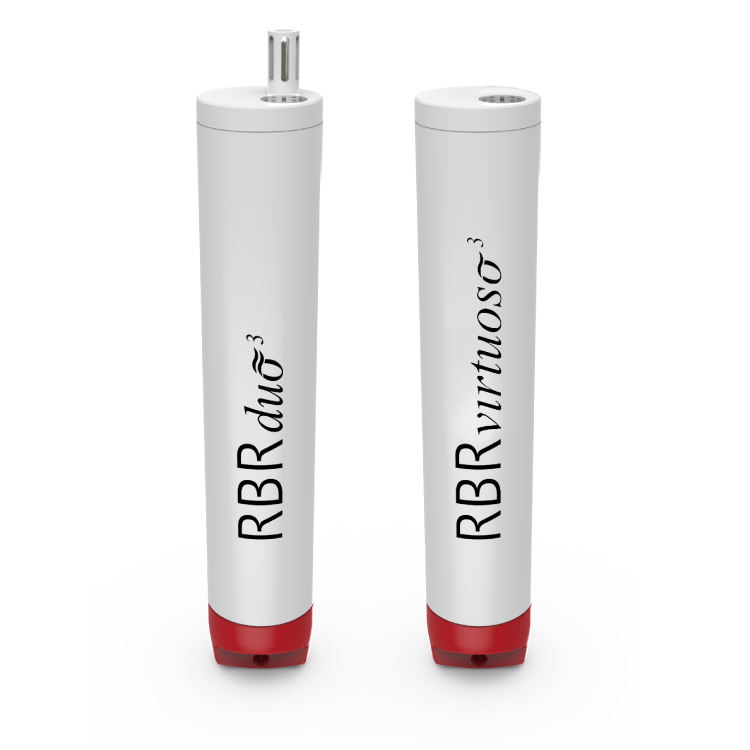

RBRvirtuosoD|tide tides, pressure

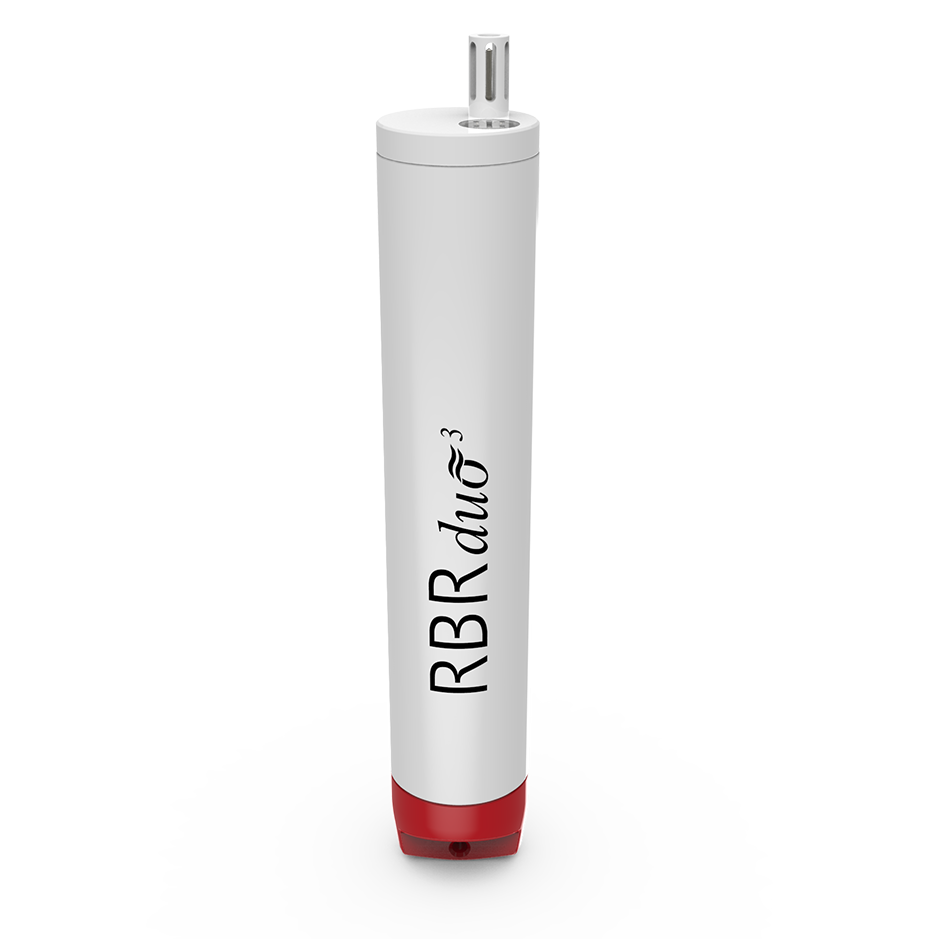

RBRduoT.D|tide tides, temperature & pressure
RBRvirtuosoD|wave waves, pressure
RBRduoT.D|wave waves, temperature & pressure

See also:
Compact | Tide & Wave



RBR tide and wave loggers offer flexible measurement schedules, long wave burst samples, expanded memory and power for extended deployments, and faster download of large data files.

The tide and wave recorders provide the ease and flexibility to establish the best sampling regime for your measurements. Both loggers take averages of the pressure readings over longer periods of time and at rates up to 6Hz to provide accurate tide level readings. The wave recorder bursts continuously or intermittently making it easier to measure boat wakes or other infrequent phenomena. The large number of burst samples makes low frequency waves easier to detect, while the fast sampling resolves high frequency waves. Wave data exports to Matlab®, Excel® or text files make post processing with your own algorithms simple. Ruskin performs wave analysis, to provide basic information about the wave composition (e.g. wave energy, H1/3, T1/3Tave and Have). Like all RBR products the RBR wave and tide loggers are designed to be easy to configure and easy to use.

Physical
Power 8 or 16 CR123A 3V cells
Communication True USB or RS-232/485
Storage ~30M readings standard
Clock accuracy ±60 seconds/year
Depth rating Plastic: 740m
Ti: 10,000m
Diameter Plastic: 63.25mm
Ti: 60.3
Length ~260mm or 395mm without sensors
Weight (air) Varies per sensor
Weight (water) Varies per sensor
Temperature
Range -5°C to 35°C
Initial accuracy ±0.002°C
Resolution <0.00005°C
Time constant ~1s (standard) or ~0.1s (optional)
Typical stability 0.002°C/year
Pressure (Depth)
Range 20 / 50m (dbar)
Initial accuracy ±0.05% full scale
Resolution <0.001% full scale
Time constant <0.01s
Typical Stability ~0.05%/year
Tides
Averaging rate >1s, 1 to 6Hz
Averaging duration 1s to 24h
Sampling period 1s up to 24h
Waves
Burst rate >1s, 1 to 6Hz
Samples per burst 512 to 32,768
