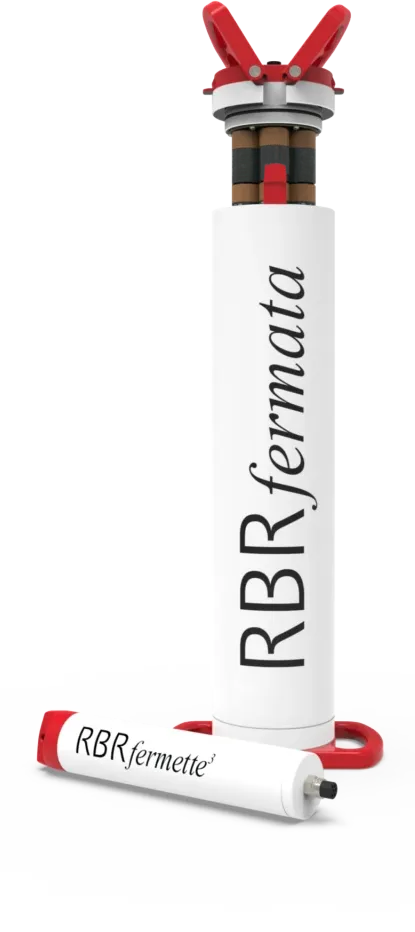

RBRfermata and RBRfermetteยณ

Underwater battery canisters

The RBRfermata battery canister extends deployments of all instruments. It automatically configures the internal arrangement of batteries regardless of cell voltage (lithium at 3.6V, alkaline at 1.5V, Ni-MH at 1.2V) to provide the nominal output. Housing 48 individual D-cells and hosting three MCBH connectors, the RBRfermata has both a 14V and 28V option.

The RBRfermata extends deployments by providing up to 2.8kWh of energy to any underwater instrument, which is about 40 times greater than our standard battery carriage capacity. An innovative battery carousel coupled with quick-release handles facilitates simple, tool-free battery replacement. A variant with low-profile handles is available for flexible integration with the Wirewalker (DMO). Polyfuses ensure overcurrent protection, resetting automatically after a fault.

As an alternative, you can also extend your deployments using the compact RBRfermetteยณ. Featuring a single MCBH connector, this battery canister accommodates 8 AA cells.

Features & Configurations

UP TO 2.8kWh CAPACITY

Overcurrent protection

pressure relief valve

three mmcbh handles

quick-release handles

battery carrousel

RBRfermetteยณ

  • 8 AA cell capacity (24Wh – 60Wh nominal)
  • Single MCBH connector for distribution

RBRfermata

  • Up to 2.8kWh capacity for extended deployments
  • Overcurrent protection with automatic reset
  • Pressure relief valve in bottom end-cap
  • Three MCBH connectors for power distribution
  • Quick-release handles for tool-free battery replacement
  • Battery carousel for secure mounting of individual D cells

Optional Configurations

RBRfermata

  • 14V or 28V variants
  • Quick-release or low-profile handles
  • 750m, 4000m, or 8000m depth rating
  • Retrofitting options*

*Legacy RBRfermataย battery canisters designed for shrink-wrapped battery packs can be retrofitted with the new battery carrousel, quick-release handles, and new electronic hardware. Contact RBR for details.

Specifications

RBRfermetteยณ

Physical
Power 8 AA cells (24Wh-60Wh nominal)
Dimensions 340mm x ร˜63.3mm
Housing Plastic or titanium
Weight 960g in air, 430g in water
Depth rating 750m, 4000m, 8000m

RBRfermata

Physical
Parameter Model with quick-release handles Model with low-profile handles
Power 48 D-cells 48 D-cells
Connectors Three MCBH-6-FS Three MCBH-6-FS
Housing Plastic or Ti Plastic or Ti
Length 663mm 686mm
Diameter ร˜140mm ร˜140mm
Handles 250mm x 142mm ร˜140mm
Weight (plastic, with batteries)Footnoteย * ~14-17kg in air,
~3-5kg in water
~13-15kg in air,
~3-5kg in water
Weight (Ti, with batteries)Footnoteย * ~27-30kg in air,
~16-18kg in water
~29-32kg in air,
~19-22kg in water
Depth rating 750m, 4000m, 8000m 750m, 4000m, 8000m
Operating temperature -5ยฐC to 35ยฐC -5ยฐC to 35ยฐC

(*) Dependent on battery type.

Electrical
Parameter 14V variant 28V variant
Battery type Lithium thionyl chloride Nickel metal hydride Alkaline Lithium thionyl chloride
Nominal voltage 14.4V 14.4V 18.0V 28.8V
Maximum current 15A 15A 4A 15A
Capacity 2.8kWh 0.5kWh 0.9kWh 2.8kWh

Related Products

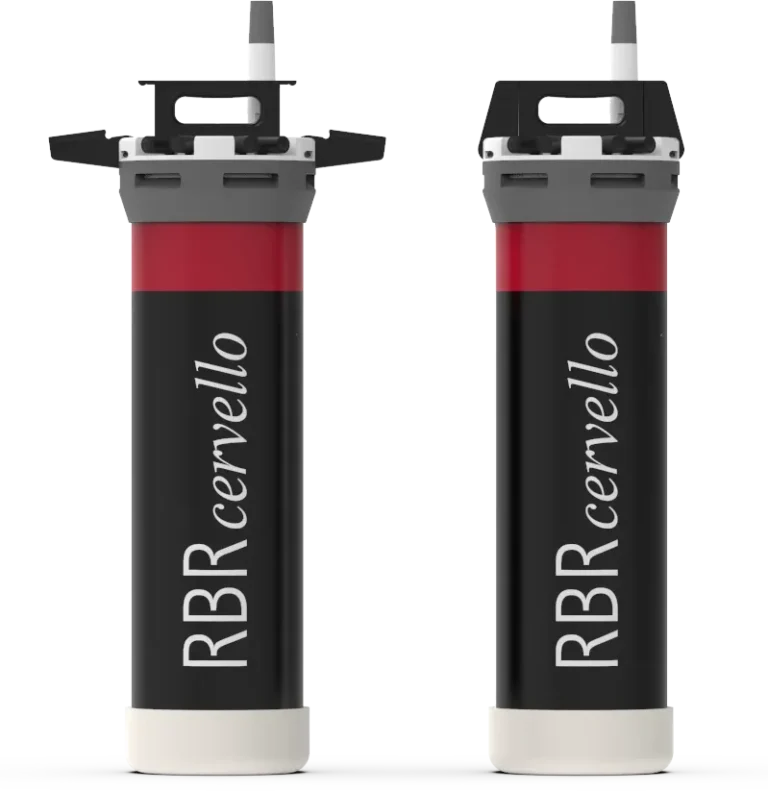

RBRcervello dual front
