Compact | Tide & Wave Loggers

Our most compact, lightweight, and versatile depth, and temperature & depth loggers for wave and tide measurements:

With tidal averaging:

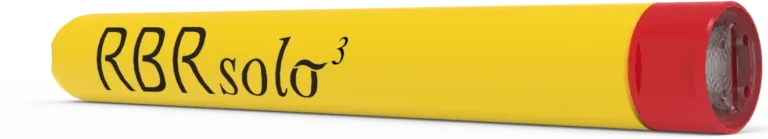

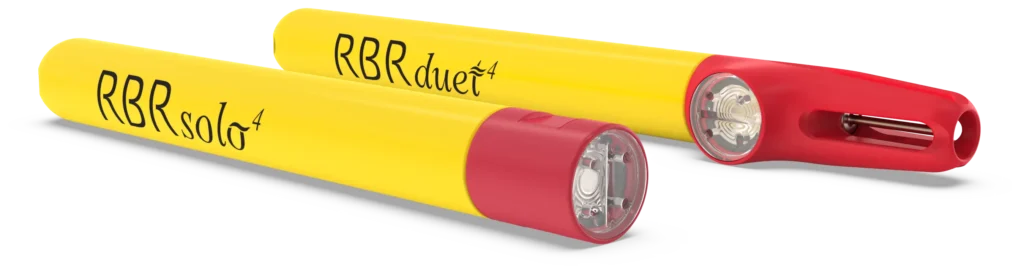

  • RBRsolo³ D|tide16pressure
  • RBRduet³ T.D|tide16 — temperature & pressure

With intermittent and continuous wave burst and tidal averaging:

  • RBRsolo³ D|wave16 — pressure
  • RBRduet³ T.D|wave16temperature & pressure

See also:
Standard | Tide & Wave

The new single tide and wave recorders provide the ease and flexibility to establish the best sampling regime for your measurements. Both loggers take averages of the pressure readings over longer periods of time and at rates up to 16Hz to provide accurate tide level readings. The wave recorder bursts continuously or intermittently making it easier to measure for example boat wakes. The large number of burst samples makes low frequency waves easier to detect. Tide and/or wave data exports to Matlab®, Excel®, or text files make post processing with your own algorithms easier. Ruskin performs wave analysis, to provide basic information about the wave composition (e.g. wave energy, H1/3, T1/3, Tave and Have).
|deep Explore up to 10km deep with the RBRsolo³|deep, and the RBRduet³|deep variants
RBRcoda³ Realtime variant (no internal memory or power)
Physical
Power Any AA cell
Communication USB-C
Clock drift ±60 seconds/year
Depth rating 1700m OSP and over 10km titanium
Diameter 25.4mm
Length ~210 to 240mm
Weight (air) Varies per sensor
Weight (water) Varies per sensor
Temperature Sensor
Range -5°C to 35°C
Initial accuracy ±0.002°C
Resolution <0.00005°C
Time constant ~1s (standard) or ~0.1s (optional)
Typical stability 0.002°C/year
Pressure (Depth) Sensor
Range OSP: 20 / 50m (dbar)
Initial accuracy ±0.05% full scale
Resolution <0.001% full scale
Time constant <10ms
Typical Stability ~0.1%/year
RBRsolo³ D|tide16
Sampling rate 24hr to 1s and 2, 4, 8, or 16Hz
Averaging duration 1s to 24h
Averaging interval 1s to 24h
RBRsolo³ D|wave16
Sampling rate 24hr to 1s and 2, 4, 8, or 16Hz
Burst (samples) 512 to 32768 (powers of 2)
Burst interval 1s to 24h
RBRduet³ T.D|tide16
Sampling rate 24hr to 1s and 2, 4, 8, or 16Hz
Averaging duration 1s to 24h
Averaging interval 1s to 24h
RBRduet³ T.D|wave16
Sampling rate 24hr to 1s and 2, 4, 8, or 16Hz
Burst (samples) 512 to 32768 (powers of 2)
Burst interval 1s to 24h
