compact and lightweight

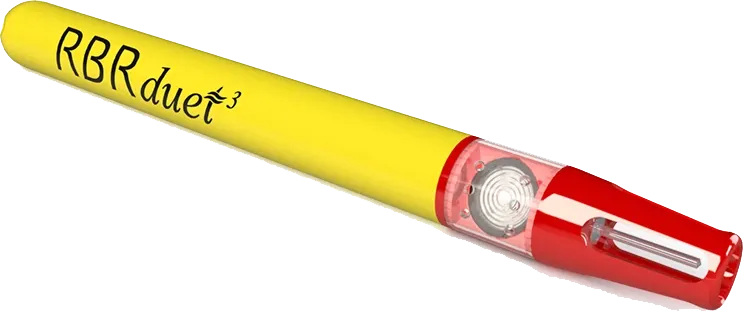

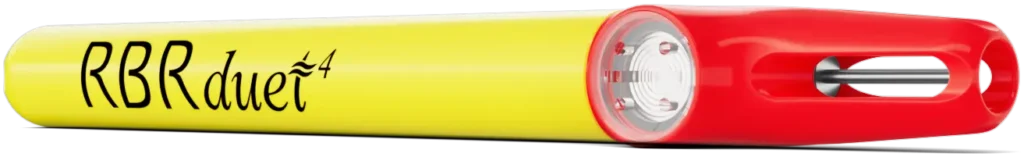

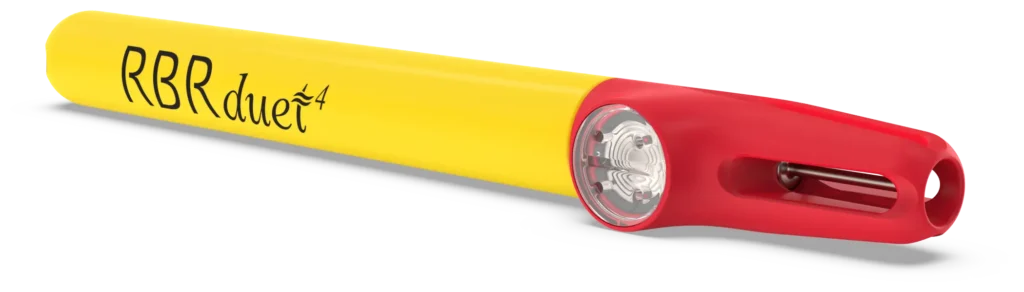

RBRduet³ T.D: dual-channel compact logger
Our most compact, lightweight, and versatile dual-channel logger.
- Long deployments
- Compact and lightweight
- Any AA battery
- Standard sampling up to 2Hz, optionally up to 32Hz
- USB-C download
- Optional | tide and | wave configurations available
- Optional | deep variant available
- Cabled  RBRcoda3 T.D  variant available
See also: Compact | Tide & Wave and Standard | Tide & Wave
Features & Configurations
The RBRduet3Â T.DÂ provides accurate temperature and pressure measurements during long deployments. Low power consumption, large memory, and ability to endure harsh conditions make it a perfect instrument for many oceanographic applications, including tide levels and wave characteristics.
The RBRduet³ T.D is calibrated to an accuracy of ±0.002ºC (ITS-90 and NIST traceable standards) and and accuracy of 0.05% full scale for pressure (between -5ºC and 35ºC). The standard thermistor has a time constant of approximately one second.
The RBRduet³ T.D has a measurement range of -5ºC to +35ºC in its standard calibration. However, it can be calibrated from -40ºC to +50ºC. Contact RBR about your particular measurement range. There are a number of pressure rating options from 20dbar to 10000dbar.
Optional Configurations
| RBRduet³ T.D | temperature and pressure; up to 2Hz continuous sampling, depths up to 1000m |
|---|---|
| RBRduet³ T.D | fast | temperature and pressure; up to 8Hz, 16Hz, or 32Hz continuous sampling |
| RBRduet³ T.D | tide16 | temperature and pressure; continuous sampling or tidal averaging |
| RBRduet³ T.D | wave16 | temperature and pressure; continuous sampling, tidal averaging, or wave burst |
| RBRduet³ T.D | deep | temperature and pressure; depths up to 10000m |
Specifications
| Storage | ~45 million samples* |
|---|---|
| Power | Any AA cell |
| Communication | USB-C |
| Clock drift | ±60 seconds/year |
| Depth rating |
Up to 1000m (plastic) |
| Diameter | ~25mm |
| Length | ~266mm |
| Weight (air) | 150g in air, 30g in water (plastic) 350g in air, 240g in water (titanium) |
*A sample may include multiple readings.
| Calibrated range* | -5°C to 35°C |
|---|---|
| Initial accuracy | ±0.002°C |
| Resolution | <0.00005°C |
| Typical stability | ±0.002°C/year |
| Time constant | <0.1 | fast, <1s standard |
* A wider temperature range is available upon request. Contact RBR for more information.
| Calibrated range | 20 / 50 / 100 / 200 / 500 / 1000dbar (plastic) 1000 / 2000 / 4000/ 6000/ 10000dbar (titanium) |
|---|---|
| Initial accuracy | ±0.05% full scale |
| Resolution | <0.001% full scale |
| Typical Stability | ±0.05% full scale / year |
| Time constant | <10ms |
| 5s | 4 years, 25M samples |
|---|---|
| 2Hz | 60 days, 10M samples |
| 16Hz | 30 days, 45M samples |
| 32Hz | 16days, 45M samples |
